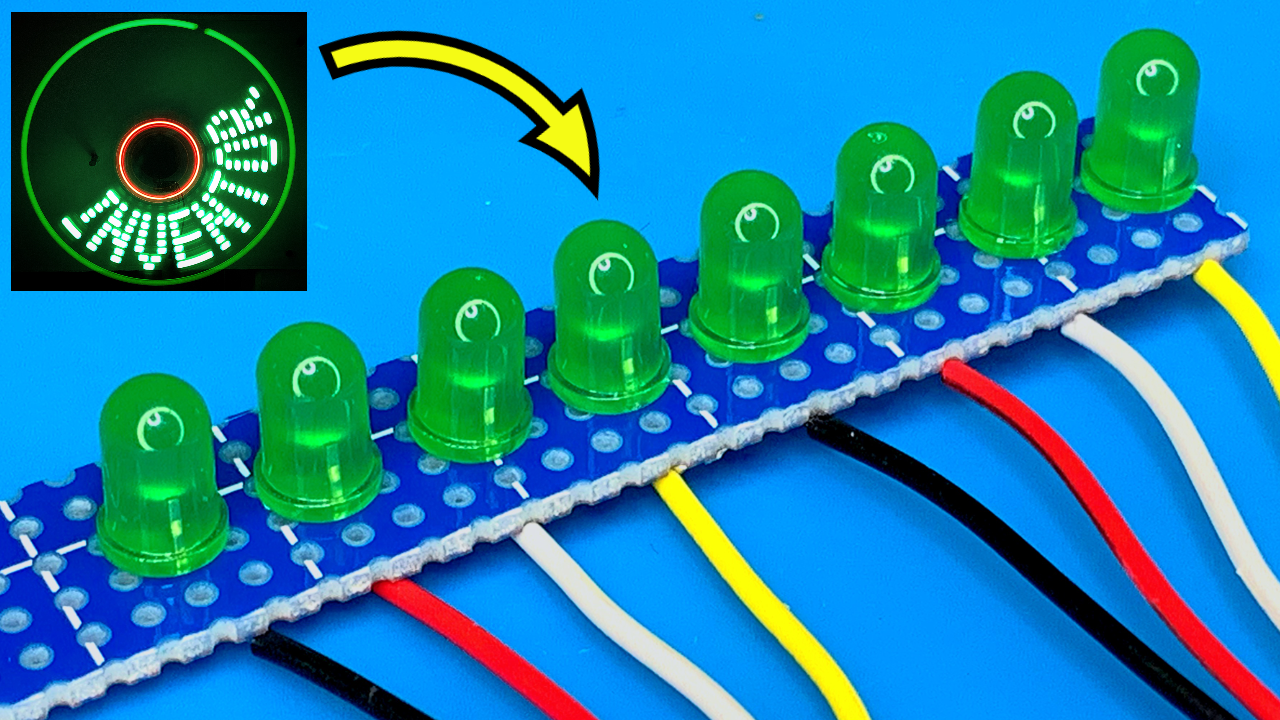

arduino POV display TEXT CLOCK

 arduino POV display CLOCK





arduino POV display TEXT






arduino POV display TEXT







arduino POV display TEXT


Click here to buy the product
👇👇👇


arduino POV display TEXT


Download text code
/* Electronoobs POV dsiplay (Persistance of vision)
 *
 * Subscribe: http://www.youtube.com/c/ELECTRONOOBS
 * Tutorial: http://www.electronoobs.com/eng_arduino_tut21.php
 */



int text_ok=0;
int a[] = {126, 144, 144, 144, 126};
int b[] = {254, 146, 146, 146, 108};
int c[] = {254, 130, 130, 130, 130};
int d[] = {254, 130, 130, 130, 124};
int e[] = {254, 146, 146, 146, 146};
int f[] = {254, 144, 144, 144, 128};
int g[] = {124, 130, 138, 138, 76};
int h[] = {254, 16, 16, 16, 254};
int i[] = {130, 250, 130};
int j[] = {12, 2, 2, 2, 252};
int k[] = {254, 16, 40, 68, 130};
int l[] = {254, 2, 2, 2, 2};
int m[] = {254, 64, 32, 64, 254};
int n[] = {254, 32, 16, 8, 254};
int o[] = {124, 130, 130, 130, 124};
int p[] = {254, 136, 136, 136, 112};
int q[] = {124, 130, 138, 134, 126};
int r[] = {254, 144, 152, 148, 98};
int s[] = {100, 146, 146, 146, 76};
int t[] = {128, 128, 254, 128, 128};
int u[] = {252, 2, 2, 2, 252};
int v[] = {248, 4, 2, 4, 248};
int w[] = {254, 4, 8, 4, 254};
int x[] = {198, 40, 16, 40, 198};
int y[] = {224, 16, 14, 16, 224};
int z[] = {134, 138, 146, 162, 194};

int eos[] = {0, 3, 2,0};
int excl[] = {0, 250, 0};
int ques[] = {64, 128, 138, 144, 96};


float delayTime=1;



//POV clock cariables
unsigned long currentMillis, elapsed_loop_counter, previousMillis;
unsigned long counter_1, current_count;

//Interruption varaibles to count rotation speed
//We create 4 variables to store the previous value of the input signal (if LOW or HIGH)
byte last_IN_state;               //Here we store the previous state on digital pin 13
float one_rot_time=0;             //Here we store the full rotation time
float time_per_deg=0;             //Here we store the time it takes to make one degree rotation



void setup() {
  PCICR |= (1 << PCIE0);    //enable PCMSK0 scan
  PCMSK0 |= (1 << PCINT5);  //Enable pin state interruption on pin D13

  //Output pins register configuration
  DDRD |= B11111100;      //2 to 7 as output
  DDRB |= B00011111;      //8 to 12 as output
  DDRB &= B11011111;      //13 input
  PORTD &= B00000011;     //2 to 7 LOW
  PORTB &= B00000000;     //8 to 13 LOW
}



void draw_a_line(int this_line){
int now_line;
now_line = this_line;
if (now_line>=128){PORTD |= B00100000;  now_line-=128;} else {PORTD &= B11011111;}
if (now_line>=64) {PORTD |= B01000000;  now_line-=64;}  else {PORTD &= B10111111;}
if (now_line>=32) {PORTD |= B10000000;  now_line-=32;}  else {PORTD &= B01111111;}
if (now_line>=16) {PORTB |= B00000001;  now_line-=16;}  else {PORTB &= B11111110;}
if (now_line>=8)  {PORTB |= B00000010;  now_line-=8;}   else {PORTB &= B11111101;}
if (now_line>=4)  {PORTB |= B00000100;  now_line-=4;}   else {PORTB &= B11111011;}
if (now_line>=2)  {PORTB |= B00001000;  now_line-=2;}   else {PORTB &= B11110111;}
if (now_line>=1)  {PORTB |= B00010000;  now_line-=1;}   else {PORTB &= B11101111;}
}









void displayChar(char cr, float line_delay){
if (cr == 'a'){for (int i = 0; i <5; i++){draw_a_line(a[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'b'){for (int i = 0; i <5; i++){draw_a_line(b[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'c'){for (int i = 0; i <5; i++){draw_a_line(c[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'd'){for (int i = 0; i <5; i++){draw_a_line(d[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'e'){for (int i = 0; i <5; i++){draw_a_line(e[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'f'){for (int i = 0; i <5; i++){draw_a_line(f[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'g'){for (int i = 0; i <5; i++){draw_a_line(g[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'h'){for (int i = 0; i <5; i++){draw_a_line(h[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'i'){for (int itr = 0; itr <3; itr++){draw_a_line(i[itr]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'j'){for (int i = 0; i <5; i++){draw_a_line(j[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'k'){for (int i = 0; i <5; i++){draw_a_line(k[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'l'){for (int i = 0; i <5; i++){draw_a_line(l[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'm'){for (int i = 0; i <5; i++){draw_a_line(m[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'n'){for (int i = 0; i <5; i++){draw_a_line(n[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'o'){for (int i = 0; i <5; i++){draw_a_line(o[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'p'){for (int i = 0; i <5; i++){draw_a_line(p[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'q'){for (int i = 0; i <5; i++){draw_a_line(q[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'r'){for (int i = 0; i <5; i++){draw_a_line(r[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 's'){for (int i = 0; i <5; i++){draw_a_line(s[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 't'){for (int i = 0; i <5; i++){draw_a_line(t[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'u'){for (int i = 0; i <5; i++){draw_a_line(u[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'v'){for (int i = 0; i <5; i++){draw_a_line(v[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'w'){for (int i = 0; i <5; i++){draw_a_line(w[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'x'){for (int i = 0; i <5; i++){draw_a_line(x[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'y'){for (int i = 0; i <5; i++){draw_a_line(y[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == 'z'){for (int i = 0; i <5; i++){draw_a_line(z[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == '!'){for (int i = 0; i <3; i++){draw_a_line(excl[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == '?'){for (int i = 0; i <5; i++){draw_a_line(ques[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
if (cr == '.'){for (int i = 0; i <4; i++){draw_a_line(eos[i]);delayMicroseconds(line_delay);}draw_a_line(0);}
delayMicroseconds(line_delay*2);
}




void displayString(char* s, float line_delay){
for (int i = 0; i<=strlen(s); i++){
displayChar(s[i],line_delay);
}
}





void loop() {

  currentMillis = micros();
  elapsed_loop_counter = currentMillis - previousMillis;
  delayTime = time_per_deg*3.5; //we want 2 degrees for each line of the letters

  //This if here is to make sure I'll start printing at 216 deg so the text will be centered.
  if((elapsed_loop_counter >=  time_per_deg*(216)) && (elapsed_loop_counter <  time_per_deg*(217)) &&  text_ok)
  {
  displayString("electronoobs",delayTime);
  //delayMicroseconds(delayTime*10);
  text_ok=0;
  }
}












ISR(PCINT0_vect){
//First we take the current count value in micro seconds using the micros() function

  current_count = micros();
  ///////////////////////////////////////Channel 1
  if(PINB & B00100000){                              //We make an AND with the pin state register, We verify if pin 8 is HIGH???
    if(last_IN_state == 0){                         //If the last state was 0, then we have a state change...
      last_IN_state = 1;                            //Store the current state into the last state for the next loop
      counter_1 = current_count;                     //Set counter_1 to current value.
    }
  }
  else if(last_IN_state == 1){                      //If pin 8 is LOW and the last state was HIGH then we have a state change
    last_IN_state = 0;                              //Store the current state into the last state for the next loop
    one_rot_time = current_count - counter_1;   //We make the time difference. Channel 1 is current_time - timer_1.
    time_per_deg = one_rot_time/360.0;
    previousMillis = micros();
    text_ok=1;
   }




}

Analog_POV_clock
/* Electronoobs POV dsiplay (Persistance of vision)
 * Subscribe: http://www.youtube.com/c/ELECTRONOOBS
 * Tutorial: http://www.electronoobs.com/eng_arduino_tut21.php */

//Variables for real time count
unsigned long Real_time_millis = 0;
unsigned long Previous_real_time_millis = 0;
float SEC;
float MIN= 45;
float HOUR = 2;
float dots_marker = 0; //Variable used for the 4 red dots

//POV clock cariables
unsigned long currentMillis, elapsed_loop_counter, previousMillis;
unsigned long counter_1, current_count;

//Interruption varaibles to count rotation speed
//We create 4 variables to store the previous value of the input signal (if LOW or HIGH)
byte last_IN_state;               //Here we store the previous state on digital pin 13
float one_rot_time=0;             //Here we store the full rotation time
float time_per_deg=0;             //Here we store the time it takes to make one degree rotation



void setup() {
  PCICR |= (1 << PCIE0);    //enable PCMSK0 scan
  PCMSK0 |= (1 << PCINT5);  //Enable pin state interruption on pin D13

  //Output pins register configuration
  /* D2 = Blue LED
   * D3 = Red 1 LED
   * D4 = Red 2 LED
   * D5 = Green 1 LED
   * D6 = Green 2 LED
   * D7 = Green 3 LED
   * D8 = Green 4 LED
   * D9 = Green 5 LED
   * D10 = Green 6 LED
   * D11 = Green 7 LED
   * D12 = Green 8 LED
   */
  DDRD |= B11111100;      //2 to 7 as output
  DDRB |= B00011111;      //8 to 12 as output
  DDRB &= B11011111;      //13 input
  PORTD &= B00000011;     //2 to 7 LOW
  PORTB &= B11100000;     //8 to 12 LOW
}



void loop() {

  //Here we calculate seconds, minutes and hours
  Real_time_millis = millis();

  if(Real_time_millis - Previous_real_time_millis >= 1000){
    Previous_real_time_millis += 1000;

    SEC=SEC+1;
    if(SEC > 59)
    {
      SEC=0;
      MIN=MIN+1;
    }

    if(MIN > 59)
    {
      MIN = 0;
      HOUR = HOUR+1;
    }
  }//End of real time count

  //Here is our loop counter. elapsed_loop_counter will reset each loop and count the loop time
  //When we reach the amount of time desired we turn ond or off the LEDs
  currentMillis = micros();
  elapsed_loop_counter = currentMillis - previousMillis;



 //Print the 4 red dots
  if(elapsed_loop_counter >=  time_per_deg*(dots_marker) &&  elapsed_loop_counter <  time_per_deg*(dots_marker+3)    )
  {
    PORTD |= B00011000; //3,4 HIGH
  }

  if(elapsed_loop_counter >= time_per_deg*(dots_marker+3))
  {
    PORTD &= B11100111;               //3, 4 LOW, the two red LEDs
    dots_marker = dots_marker + 90;
    if(dots_marker >= 360)
    {
      dots_marker = 0;
    }
  }





  //Print the second line
  if(elapsed_loop_counter >=  time_per_deg*(SEC*6) &&  elapsed_loop_counter <  time_per_deg*((SEC*6)+2)    )
  {
    PORTB |= B00011111; //8, 9, 10, 11 and 12 as HIGH
    PORTD |= B11100000; //2 (blue), 5, 6 and 7 as HIGH
  }

  if(elapsed_loop_counter >= time_per_deg*((SEC*6)+2))
  {
    PORTB &= B11100000;
    PORTD &= B00011111;
  }




   //Print the minute line
  if(elapsed_loop_counter >=  time_per_deg*(MIN*6) &&  elapsed_loop_counter <  time_per_deg*((MIN*6)+1)    )
  {
    PORTB |= B00011111; //8, 9, 10, 11 and 12 as HIGH
    PORTD |= B11000000; //2 (blue), 5, 6 and 7 as HIGH
  }

  if(elapsed_loop_counter >= time_per_deg*((MIN*6)+1))
  {
    PORTB &= B11110000;
    PORTD &= B00111111;
  }



   //Print the hour line
  if(elapsed_loop_counter >=  time_per_deg*(HOUR*30) &&  elapsed_loop_counter <  time_per_deg*(   (HOUR*30)  +1)   )
  {
    PORTB |= B00011111; //8, 9, 10, 11 and 12 as HIGH
    PORTD |= B00000000; //2 (blue), 5, 6 and 7 as HIGH
  }

  if(elapsed_loop_counter >= time_per_deg*(  (HOUR*30)   +1))
  {
    PORTB &= B11100000;
    PORTD &= B11111111;
  }

}











ISR(PCINT0_vect){
//First we take the current count value in micro seconds using the micros() function

  current_count = micros();
  ///////////////////////////////////////
  if(PINB & B00100000){                              //We make an AND with the pin state register, We verify if pin 13 is HIGH???
    if(last_IN_state == 0){                          //If the last state was 0, then we have a state change...
      last_IN_state = 1;                             //Store the current state into the last state for the next loop
      counter_1 = current_count;                     //Set counter_1 to current value.
    }
  }
  else if(last_IN_state == 1){                       //If pin 13 is LOW and the last state was HIGH then we have a state change
    last_IN_state = 0;                               //Store the current state into the last state for the next loop
    one_rot_time = current_count - counter_1;        //We make the time difference. one_rot_time 1 is current_count - counter_1.
    time_per_deg = one_rot_time/360.0;
    previousMillis = micros();

   }




}
